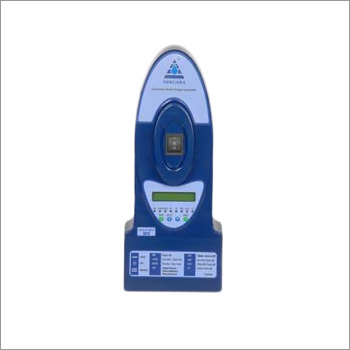

Automatic Water Pump Controller

Automatic Water Pump Controller
Automatic Water Pump Controller
Product Code : 01
Product Description

Listed amidst the prominent Manufacturers, Exporters & Suppliers of Automatic Water Pump Controller; we are customers' most preferred name in this domain. The Water Pump Controller is designed by the highly experienced professionals, followed by the manufacturing, quality testing by the Engineers. We make certain the range is as per the globally accepted standards.

Features

  • Auto start when tank gone empty
  • Auto off when tank got full.
  • Pump can start directly through
  • By-pass switch
  • High- low voltage protection
  • Manually start with auto stop
  • Low Voltage and High Voltage Protection
  • Idle Running Protection
  • Overload Protection
  • Dry Run Protection 2 12os
  • Depending on the site condition, this model can be scaled up, to have a current handling capacity of up to 30Amps
  • Real time (user settable) Tank refill option. Optional timers relay (User settable ON time and OFF time),
  • Can be used for surveillance, lighting, water Springer, etc.,
  • Field configurable safe working voltage (both during start and RUN) and currents for the motor 2‘16 LCD indication (Status, Voltage, Current and Energy) with three push button menu control
  • Highly reliable, fully concealed no contact float switch working on low voltage
  • Energy indication To indicate the energy that consumed by the motor
  • Excellent motor protection against low voltage, high voltage
  • WATPUMP is usually used for all single phase pumps
  • Dry Run Protection 2 12os
  • Optional level indication
  • Upper & Lower Level adjustable as per user choice
  • Idle Running Protection
  • Overload Protection

Specifications

Power Supply Input

230 V

Voltage Protection Range

150V - 230V

Internal Voltage

12 V DC

Sensing Systems

Advanced AC sensing

Display

Water Low, High, Sump Level, Power/ Motor ON

Alarm

Audio with Acknowledge facility (Optional)

Resolution

Minimum 60 mm

Signaling Distance

Up to 100 meters ( For more please specify)

Measurement Accuracy

0.01

Operating Voltage of Sensor

5V DC

Power Consumption

0.25 watts

Depth of Tank

Up to 3 meters ( For greater depth please specify

Types of Liquids

Most Liquids (Sp. gr. up to 1 .2, temp 120 deg 0

Mounting

Key Holes

Material Panel Probe Actuating Float

Power Coated Metal Sheet as per IP21
