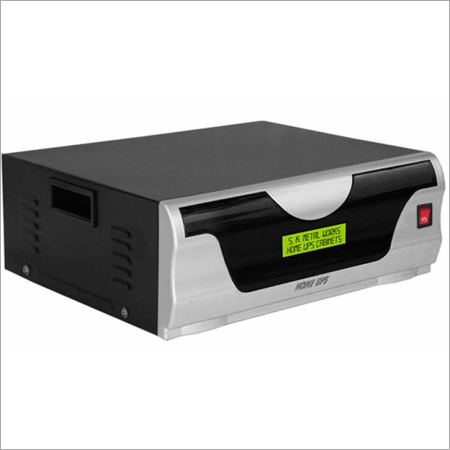

Product Code : GT-09
Brand Name : GEESYS TECHNOLOGIES
Product Description

Our company is an eminent manufacturer, supplier and exporter of high grade Home UPS to widely scattered customers. This device is an inverter but also contains an efficient and powerful smart charger. It is an very good preferred selection for utility back up power, offer a pure sine wave power to all devices. However, it also can be utilized as a UPS for Personal computers. A switching box charger and inverter can be replaced with a single Home series unit. We offer this Home UPS at reasonable prices in market.

Main Functional Features:

  • Reliable, Durable and Economical Power for Grid and Mobile Applications
  • Microprocessor based Inverter/Charger provides Ultra-clean pure sine wave output with less than 5% total harmonic distortion
  • Supply energy to various loads such as resistive load, inductive load, motors and rectifier load.
  • Control panel with large LCD
  • Powerful 300% surge power
  • Low sleep mode power consumption of less than 5W
  • Phase & frequency synchronization option for seamless transfer times
  • Programmable big current, 3 stage battery charger
  • Long backup time up to 10 hours (based on the battery bank and loads).
  • Easy to install, easy to maintain, and built for years of reliable service

Specifications:

                 Model

GET0612

GET1012

GET1612

GET2524

GET3524

DC Input

Nominal Input Voltage

12V

24V

DC Input Voltage Range

10-14V

10-15V

20V-30V

No battery(AC normal)

NO

Working in AC mode

AC Input



Input voltage range

85~132V for 110V/170v~254V for 220V

Nominal Input Frequency

50Hz / 60Hz (Auto detection)

Generator

Yes

Output

Nominal output voltage

110V(+/-6%) for 110V/220V(+/-6%) for 220V

Nominal output Frequency

50Hz/60Hz(+/-0.3Hz)

Output waveform

Pure sine wave

Continue power

600W

1000W

1600W

2500W

3500W

Surge protection

1800W

3000W

4800W

7500W

10500W

Power Factor

0.8 - 1.0

THD

<5%

Inductive Load

Yes

Motor Load

Yes

Rectifier Load

Yes

Battery charger

Adjustable Charge current

10-30A

10-40A

10-60A

10-70A

Adjustable Charge voltage

14V

13-15V

26V-30V

Number of Charging stages



3 stages-Bulk,Boost,Float

General

Human machine interface

LED&Buzzer

LCD&LED&Buzzer

Operating temperature

0℃-40℃

Operating humidity

5%-95%RH

Forced Air Cooling

Variable Speed fans

Wall Mounting

YES

Shipping Weight (kg)

13

16

20

22

23

Dimensions (WxDxH) mm

295*267*150

447*225*185

465*225*185

Packing(WxDxH) mm

375*342*234

600*360*268

630*360*268

Application:

  • Point-of-Sale Equipment
  • Home Laptop
  • Electronic gadgets
  • Communication Equipments
  • Scanner
  • Inkjet / Laser Printers
  • Point of sale terminals
  • Fax machines
  • Lights and Fans
