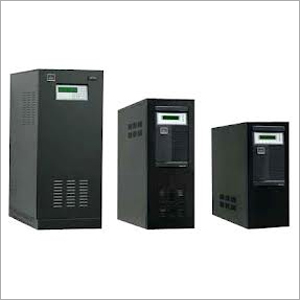

Power Inverter
We are a noted manufacturer, supplier and exporter of GEESYS iPower Inverter in Chennai, Tamil Nadu, India. Made from finest component, we offer this GEESYS iPower Inverter at moderate prices to clients.
Our modern lifestyle as well as requirement for electronic and electrical equipment to accompany us on work and on our travels has brought us to have independent energy on journeys and in industrial application when away from keys supply. When connected to a suited battery or battery bank, an Industrial Inverter allows to run general mains operated devices in industrial power system, household power system, or in fact anywhere user require mains kind power. The typical industrial power system needs a charger. A combination of an intelligent multi charger and a sine wave inverter allows clients charging the battery from keys supply or the vehicle while they are driving. Clayton Power has developed superior quality power equipment and well suited for industrial power systems that can performance as "off-grid systems" where a 360V volt battery voltage are being transformed to a 230 volt true sine wave as we find in the public grid system.
Salient Features:
- State of art MOSFET/IGBT based PEM technology to increase Crest Factor Tolerance & Dynamic Stability
- Auto Sense Intelligent Control Smart Charger
- High performance voltage and current regulation with DSP control
- Electronic change over, hence better reliability
- Surge load capacity up to 300%
- Quiet operation of AC motors as well as the other Inductive loads unlike that with modified Sine Wave Inverters
- Very Low Total Harmonic Distortion <3%
- Wide input voltage range
- All necessary Protection like Short Circuit, Over Temp., Battery Low/High, Mains MCB Tripped etc. with Comprehensive display
Specifications:
| Model | GET10 - 200 |
| Rating | 10KVA – 200KVA |
| AC INPUT | 415V + 15% -20% Three Phase Input |
| Frequency | 50Hz ± 6% |
| DC VOLTAGE: | 360VDC |
| Charging Time | 12 Hours for 90% of full Capacity |
| Charger Type | CVCC Internal Controlled Rectifier type |
| INVERTER: | |
| Technology | IGBT |
| Output Voltage | 400V AC Three Phase |
| Voltage Regulation | ± 2% for DC I/p variation & o/p load variation |
| Frequency | 50Hz ± 0.5Hz |
| Waveform | PWM Sine wave |
| Harmonic Distortion | Less than 3% |
| Inverter Efficiency | > 92% |
| Power Factor | 0.8 |
| Overload | 150% for 60 sec |
| Crest Factor | 3:1 |
| Phase Displacement | 1200 ± 10 |
| Audible Noise | Less than 50 dB at 1 Meter |
| METERING: | |
| Microprocessor based Digital LCD Meter for | R,Y,B Output Voltages, Output currents & Frequency, DC Voltage , Battery and Load Percentage |
| GENERAL: | |
| Dimensions (LxWxH)mm | 1200x 450 x 1100 |
| Operating temperature | 00C to 500C |
| Humidity | Max 95%, Non-condensing |
| PROTECTIONS : | |
| Output Overload & Short circuit, Output Under & Overvoltage, DC Under & Overvoltage Input Under & Overvoltage, Single Phasing & Phase unbalance | |
| INDICATIONS & ALARMS: | |
| a) Mains on | Indication |
| b) Inverter on | Indication |
| c) DC Low | Indication & Alarm |
| d) Fault | Indication & Alarm |
| e) Output Overload | Indication & Alarm |
| CHANGEOVER | |
| Static Switch(Optional) | Bi-directional |
| * Specifications are subject to change without prior notice due to constant improvement in design & technology | |
Application:
- For providing reliable power back-up for Lift/ Elevators
- Petrol/Diesel Dispensing (Filling) Machines
- Major Power Back Up source in Corporate Offices as well as Call Centers
- Emergency & Mobile Power Systems
- As a major power supply source for water Pumps, Fire pumps & other 3Phase critical motorized equipment
- Computers & peripherals / Office Equipment like, Scanners, Printers, Fax Machines etc.
- Air Conditioners and all compressor Based applications Like Water Cooler, Bottle Coolers, Ice Cream Parlors etc.
