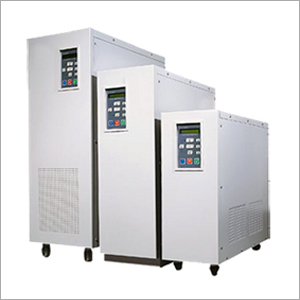

Ups System

Ups System
Ups System
Product Code : GT-07
Brand Name : GEESYS TECHNOLOGIES
Product Description

As a profound manufacturer, supplier and exporter, we are introducing the technologically advanced Ups System to customers. This system is widely required in a number of industrial, commercial and residential devices and gadgets. Made from the best grade components with updated technology, this UPS system is checked by skilled analysts on varied aspects. Moreover, we are offering this Ups System to clients competitive price in safe packing.

Main Functional Features:

  • Microprocessor based design
  • Extended battery run-time -Models
  • Built-in automatic voltage regulation (AVR)
  • Full time EMI/RFI suppression
  • Cold start capability
  • Printer surge protection
  • Telephone / Modem / Fax / Ethernet line surge production
  • PC Interface and advanced power monitoring software
  • Smart battery management
  • Generator Compatibility
  • User-replaceable battery
  • Extended Back-up Time (optional)
  • Sine Wave Output reliable and constant
  • Double Conversion technology
  • DSP based PWM technology
  • Galvanic isolation
  • Upgradable on site
  • Lightning and surge protection
  • Static by-pass switch (optional)
  • Wider input voltage and frequency window
  • Provides extra long back-up for computers
  • Uninterrupted power for computers - no reboots during power cuts
  • DSP Based Intelligent Control Circuit
  • User friendly LCD Display (Message and Faults)
  • Auto Self test on LCD
  • DSP Based Smart Charger
  • Smarter Overload Sense & Short Circuit Protection
  • High surge withstand capability (upto 300%)
  • Easy to Service
  • Battery State Monitoring
  • Three Stage Battery Charger
  • Great Power Saving
  • Automatic Power Factor Correction
  • Future Expandability possible
  • IGBT based technology

Specifications:

Capacity

1KVA

2KVA

3KVA

6KVA

10KVA

INPUT

Rated input voltage

220V

Rated input frequency

50Hz/60Hz (self-adaption )

Input voltage Range

110-300 VAC (Half load),140~300VAC (Full load)

Input frequency Range

45-55Hz +/-0.5%   50Hz

55-65Hz +/-0.5%   60Hz

Phase

single phase+N+GND

Power factor

≥0.98

≥0.99

Input current (liner full load)

5.0A or 10A

9A or 15A

14A or 30A

27.0A

46.0A

THD

5%

ByPass voltage range

186VAC-252VAC

OUTPUT

Rated voltage

208VAC/220VAC/230VAC/240VAC can be set on LCD

Power factor

0.9

Voltage distortion

+2¼…

DC component voltage

≤200mv

Output current crest factor

3:1

Rated frequency

AC mode

same as input frequency

Battery mode

50/60±0.2Hz

Phase lock speed

≤1Hz/s

Wave distortion

100% linear load <3%;100%; nonlinear load <5%

Transfer time

From Mains mode to battery mode

0ms

From battery mode to Mains mode

0ms

From Mains mode to bypass mode

<4ms

From bypass mode to Mains mode

<4ms

From normal mode  to ECO mode

≤10ms

System Efficiency

Full load

90 %

≧92%

ECO mode

94%

Inverter overload capacity

105%150% 30s transfer to bypass mode giving alarm; >150% 300ms transfer to bypass mode giving alarm;

Battery

Battery type

Lead Acid maintenance free battery

DC voltage

24V DC

48V DC

72V DC

192V DC

192V DC

Inbuilt battery

7AH/12V

7AH/12V

7AH/12V

9AH/12V

9AH/12V

Battery quantity

2

4

6

16

16

Charge

Output voltage

27.5±0.4V

55±0.6V

82.5±0.9V

220.8±0.9V

220.8±0.9V

Charge method

Three-stage charging

Recharge time

90% capacity after 5hrs charging (standard model)

According to battery capacity(long time model)

Input voltage range

80VAC~300VAC

Charge current

Standard model:1A

Long time model: 6A (can extend to 12A)

Protection

Over-temp protection Fan testing protection AC  L and N connect wrong protection Output short circuit protection

Control

Silence; cold start; AC restart; Auto restart.

Communication

RS232, SNMP card , USB

Software function Statue analyze: Switch on/off UPS system, Monitor UPS working state ,store history

Display

LCD/LED

System Operating Environment

Operating environment

Operation tem.

0 - 40

Store tem.

-25-55

Humidity

20 - 90%(non-condensing)

Altitude

0m altitude 1500m, over 1500m, used with power derated

Noise

<50db (1-3kva)

<55db(6-10kva)

Dimension(W*D*H)

357*144*215

439*190*341

439*190*341

514*262*455 (Long time model)

574*262*710 (Standard model)

Weight(Kg)

Long time model

6

12

12.5

42

Standard model

10

20

24

57

Application:

  • Point-of-Sale Equipment
  • Communication Equipments
  • Home PC's
  • Electronic gadgets
  • Entry level servers
  • PC's with advanced Multimedia features
  • Scanner
  • Fax machines
  • Inkjet / Laser Printers
  • Point of sale terminals
  • EPBAX
  • LAN
